SCHLAGE G80PD ORB/NEP SCP KNOB-LEVER STOREROOM LOCK

Code:
G2ONSTRS
MPN:
9416361179773
Price:
$141.55 inc GST
Price:
$128.68 exl GST
Brisbane
Available to Order
Avg. Dispatch Time:
Click Here
Size:
75mm Diameter
Finish:
Satin Chrome

Description

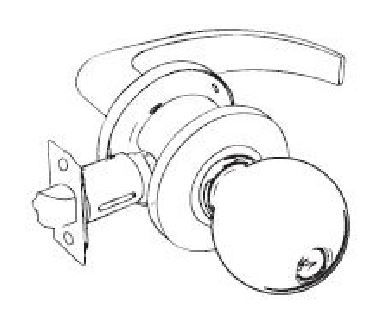

Allegion Legge G2OSSTRS G2S Series Orbit Knob / Sparta Lever Storeroom Key In Lever Lockset

  • Finish: Various Finishes
  • Function: Storeroom
  • Internal: Lever Always Unlocked / Opened By Lever.
  • External: Knob Always Locked / Knob is Rigid.
  • Lock Type: Cylindrical
  • Rose Diameter: 75mm
  • Cutout Diameter: 54mm
  • Backset: 70mm G2-70DLS Deadlatch Standard
  • Keyed Alike: Can Be Keyed Alike (Add JBSHOPREKEY2 To Checkout)
  • Restricted Master Key: Suitable For Master Keying Dependent On Keying System
  • Door Thickness: 35 - 50mm
  • Fire Rated: Yes
  • As1428.1 Disabled Compliant: Yes
  • Warranty: 10 Years
Additional Information
  • G2 Series Is Ideally Suited For Residential, Light And Medium Duty Commercial Applications.
  • Key Locking Versions Can Be Keyed To Match Existing Keys If Same Key Profile (Add JBSHOPREKEY2 To Checkout*) - *Existing Keys Must Be Provided For This Service.
  • Available Latches 60mm G2-60DLS Deadlatch & 127mm G3-127DLS Extension Link Tube (Designed To Be Attached In Conjunction With 60mm G2-60DLS Deadlatch To Create A 127mm Backset) Sold Separately.
  • Non-Handed.
  • Snap-On Inside Rose Conceals Mounting Plate And Screws.
  • Supplied Standard With D And T Strikes And Spacer Rings.

Downloads

Type:
Key in Lever (Cylindrical)
Is Fire Rated:
Is Fire Rated
AS1428.1 Compliant:
AS1428.1
Comes With Cylinder:
Yes
Fixing:
Concealed - Bolt Through
Function:
Storeroom
Handing:
Non-Handed
Material:
Cast Zinc / Steel
Finish:
Satin Chrome
Backset:
70mm
Brand:
Schlage
Size:
75mm Diameter
