LOCKWOOD 3782EL 12-24VDC E/MORT P/LOCK 23MM B/SET

Code:

3782ELSS

Price:

$1,333.43 inc GST

Price:

$1,212.21 exl GST

RRP:

$1,564.15 inc GST

You save 23%

Brand

Brisbane

In Stock - Low Availability

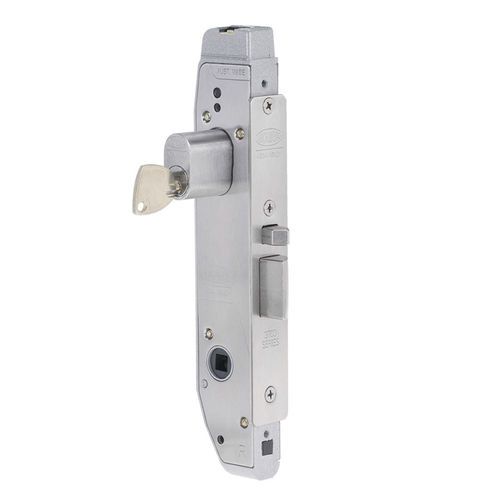

Lockwood 3782ELSS 23mm Back Set Electric Mortice Lock – No Cylinder

Finish: Stainless Steel
Backset: 23mm as standard, 25.4mm, 30mm & 38mm available
Voltage: 9VDC - 28VDC Operating Voltage
Monitoring: Yes – Refer Below
Field Changeable: Fail Safe / Fail Secure configuration
Keyed Alike: Available
Compatible with Restricted Master Keying: Yes
Door Thickness: 32-50mm
Fire Rated: Yes
AS1428.1 Disabled Compliant: Yes
Warranty: 1 Year Electronic Manufacturer Warranty & 25 Years Mechanical Manufacturer Warranty

Additional Information

Monitoring - Key override (NC), Deadlatch (NC), Door Position (NC), REX (NO / NC) & Lock Status (NC) - all 30VDC 50mA MAX
Cabling - Supplied with 3.6m cable with 12 pin Connector & Moisture Deflecting Boot supplied with each Lock Recommended cabling: 18AWG (0.82mm2) cable runs up to 30m
Compatible with Lockwood 4800 & 5800 Series Door Furniture – Including 4811/70 Led Lens Furniture

Type:

Australian Mortice Lock

Door Type:

Aluminium, Aluminium Framed Glass, Metal Clad, Gate

Fixing:

Morticed

Function:

Electronic

Material:

Zinc Die-cast

Finish:

Satin Stainless Steel
