DORMAKABA TS92 EN1-4 SURFACE MNT HOLD OPEN PULL DOOR CLOSER
Code:
DTS92B24GNRF
Brisbane
Available to Order
Description

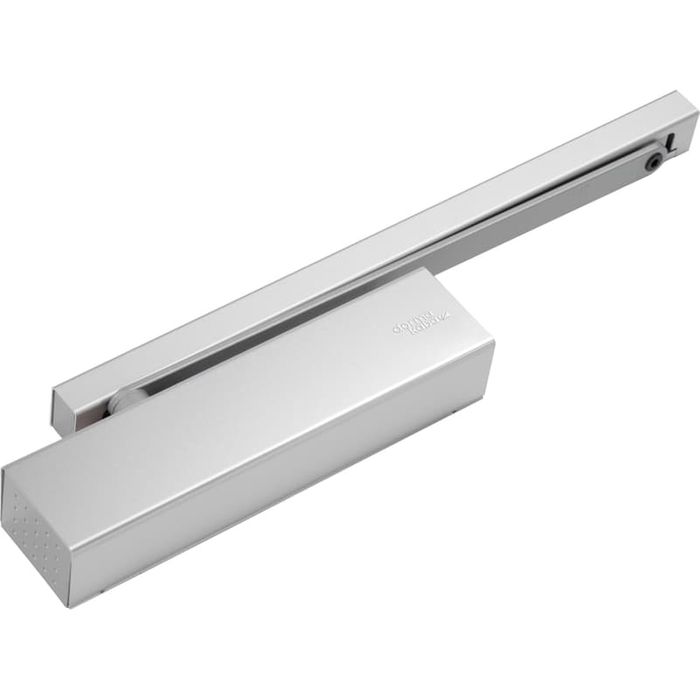

Dormakaba TS92 RF Cam Action Hold Open Slide Channel Door Closer
- Finish: Silver
- Spring Strength: EN1-4
- Arm Type: Slide Channel
- Hold Open: Yes
- Delayed Action: No
- Back Check: No
- Opening Angle: 145 - 180 Degrees dependent on mounting application
- Maximum Door Weight: 80 kg
- Door Leaf Width: 1100mm
- Fire Rated: No
- AS1428.1 Disabled Compliant: Yes
- Warranty: 10 Years
- Select Application - Push Side Mounting ‘ G ‘ Body or Pull Side Mounting ‘ B ‘ Body
- ‘ DG91/92/93HO ‘ RF Hold Open Device enables doors to be securely held open without any fall-back at precisely the required position up to an opening angle of approx. 150° degree – not to be used on Fire & Smoke Doors
- ‘ DLS ‘ cushioned limit stop. Required for fire and smoke doors. The additional cushioned limit stop prevents the door from hitting the adjacent wall when opening normally – adjustment between 80° & 120° degree - sold separately
- Cam action technology enables doors to be manually operated with less effort than that required for conventional closers
Downloads
Application:
Commercial, Residential, Internal Door, External Door
Type:
Slide Arm, Cam Action
Fixing:
Surface Mounted
Function:
Adjustable Backcheck, Delayed Action, Hold Open, Adjustable Strength
Handing:
Pull Side
Finish:
Silver
Available Options
- DORMAKABA DTS92B24GNRF TS92 EN1-4 SURFACE MOUNTED PULL SIDE HOLD OPEN DOOR CLOSER SILVER FINISH
- DORMAKABA DTS92G24GNRFAB TS92 EN1-4 SURFACE MOUNTED HOLD OPEN PUSH DOOR CLOSER SILVER FINISH
